ANK1 Drie kamers steekpen RVS-PTFE 900mm
ANK1 Drie kamers steekpen RVS-PTFE 900mm
Detail

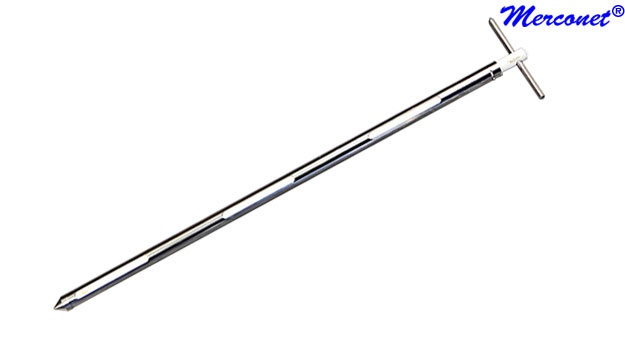

The ANK1 is a multilevel zone sampler for taking discrete, zone samples from free flowing powders and granules available in a range of sizes and designs. The outer tube of the ANK1 is made of 316L Stainless Steel with PTFE inner rod/core. Its design can be stripped and cleaned very quickly. Correct analysis starts with good sampling. The ANK1 is ideal for taking fast representative samples of powder and granules.
Kenmerk
- Ideal for multilevel sampling
- 316L Stainless Steel outer with PTFE inner core
- Ideal for sampling from drums, kegs, big bags and most containers
- Ideal for taking samples of free flowing powders and granules
Info
Operation
1. Close the sampler and then push it into the product.
2. Rotate the inner rod to open the sampler.
3. Wait a few seconds for the product to flow into the pockets.
4. Rotate the inner rod to close the sampler and then pull the sampler out of the product.
1. Close the sampler and then push it into the product.
2. Rotate the inner rod to open the sampler.
3. Wait a few seconds for the product to flow into the pockets.
4. Rotate the inner rod to close the sampler and then pull the sampler out of the product.
Specificatie
| Material of Construction: | Outer Rod: 316 stainless steel |
| Tip: 316 stainless steel | |
| Handle: 316 stainless steel | |
| Inner Rod: PTFE | |
| Outer Diameter of Outer Tube: | 25 mm |
| Overall Length: | 900 mm |

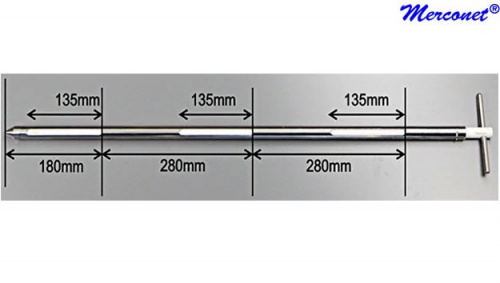

| Pocket Length: | 135 mm |
| Pocket Width: | 11 mm |
| Pocket Volume: | 20 ml |
| Number of Pockets: | 3 |
| External Finish: | <1 Micron Ra |
| Internal Pocket Finish: | Fine machined finish |
| Nominal Weight of Sampler: | 1.5 Kg |
| Goedkeuring: | CE, RoHS en WEEE |
Optie
AJG6 Punt scherp 25mm
AJG7 Punt rond 25mm

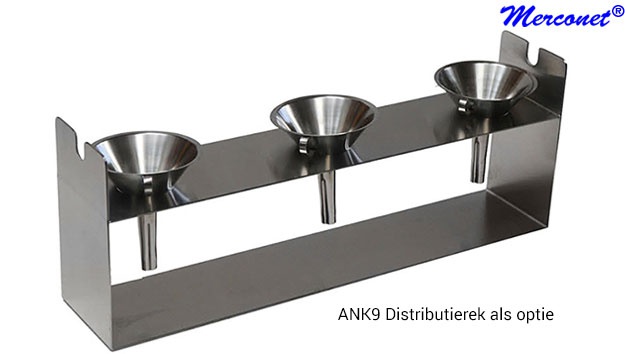

ANK9 Distributierek 731mm
ANL0 Afsluitkap 3x 25mm
Prijs
560,23 € (463,00 € excl. btw) stuk
