ACE2 6km Grafische TDR



Bestel
The add to cart button will appear once you select the values above
Detail

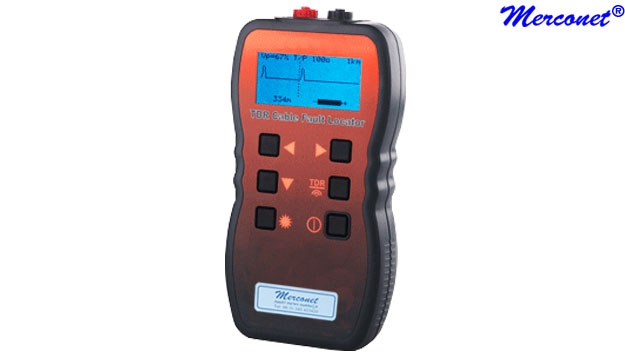

The ACE2 6km. (19,000ft) range Time Domain Reflectometer weighing only 350 grams (13oz) fits neatly into the hand. With its 128x64 pixel backlight, scratch resistant display, provides accurate and easy to read fault locations on metallic cables. With a 3 nano second pulse, rise time “near end” cable faults can be clearly identified without the need to surpress the transmitted pulse. Housed in a rugged IP54 rated ABS enclosure, the ACE2 is suitable for outside use. Using pre determined gain and pulse widths for each range setting and with only 4 control buttons, all major operating and setting parameters can be easily accessed. A 6km cable run can be scanned in seconds, allowing the operator a view of the cable run, yet arriving quickly to the fault. By using the ACE2 scan lock facility, the cable can be continually scanned or the trace held for closer analysis. To enable the ACE2 to test all metallic cables, four user selectable output impedances are provided 25, 50, 75 & 100 ohms. Faulty cables may be traced using the ACE2 warble tone feature, an oscillating tone is injected into the suspect power or transmission line and by using a commercially available tone tracing probe, the suspect line can be identified, for this function an optional receiver is required.

Kenmerk
  • 6 km (19,000ft)
  • 0.5mtr dead Zone
  • Selectable Cable Impedance
  • Warble Tone Generator
  • Rapid Fault Location
  • Large 128x64 LCD with Backlight
  • Scratch Resistant Display
  • Environmental Protection IP54
  • 60 Hours Battery Life
  • Easy to Use
Specificatie
Length: 6km
Impedance: 25, 50, 75 & 100 Ω
Dead zone: 0.5m
Ranges Meters Kilometers: 7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 6km
Range step: 11
Accuracy: 1% of selected range*
Resolution: Approximately 1% of range
Range selection: Manual
Sensitivity: Min 3 pixel return at 4km on 0.6mm Ø, PE, TP
Output Pulse Width: 3 ns to 3 ms, connected to range setting
NVP VoP Velocity Factor: Adjustable from 1% to 99%
Scan Rate: 2 scans / second or scan held (not on 3km/6km range)
Output Pulse: 5 volts peak to peak. Into open circuit
Tone Generator: 810 - 1100Hz
Connector: 2x Banana chassis
Display: 64 x 128 pixel
Backlight: Yes
Voltage Protection: 250 volts AC
Battery Life: 60 hours continuous scanning
Power Supply: 6 volts 4 x 1.5 AA Alkaline cells
Power Down: Selectable 1, 2, 3, 5 minutes or disabled
Operating Temperature: -10°/ 50°C
Storage Temperature: -20° / 70°C
Dimensions: 165 x 90 x 37 mm
Weight: 350 grams
Standards: IEC 61010-1
  EN 60950
  ISO9001
EMC: BS/EN 61326-1
Water/Dust Proof: IP54
Goedkeuring: CE, RoHS en WEEE

* Measurement accuracy of <+/- 1% assumes the instrument
setting for velocity of propergation (Vp) of the cable under test to be accurately set, homogeneity of the Vp along the cable length,
and accurate cursor positioning.
Content
- Main unit
- AJJ4 Tas ACE0/ACE1/ACE2/GT21/GT22
- AJJ3 Banaan naar krokodilbek ACE0/ACE1/ACE2
- Engels Gebruiksaanwijzing
Optie
- CU03 Cursus analoge telefonie en ondergrondse netwerken
- KO10 Instrumentkoffer medium (105 mm)
- ON80 Ontvanger 9001
Prijs
840,95 € (695,00 € excl VAT) each
